The Entire View Could Not Be Shown On One Screen After Publishing the Workbook With [Show Sheets as Tabs] Enabled

Issue

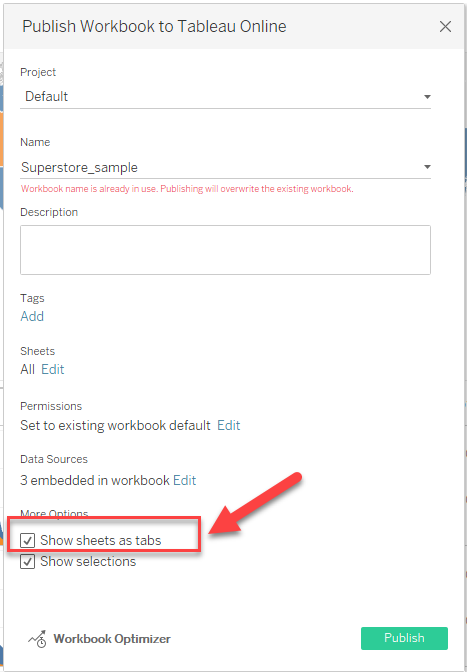

When publishing a workbook with "Show sheets as tabs" checked to Tableau Server / Tableau Cloud,part of the dashboard may be displayed truncated with scrollbars depending on the size of the browser/window.

User-added image

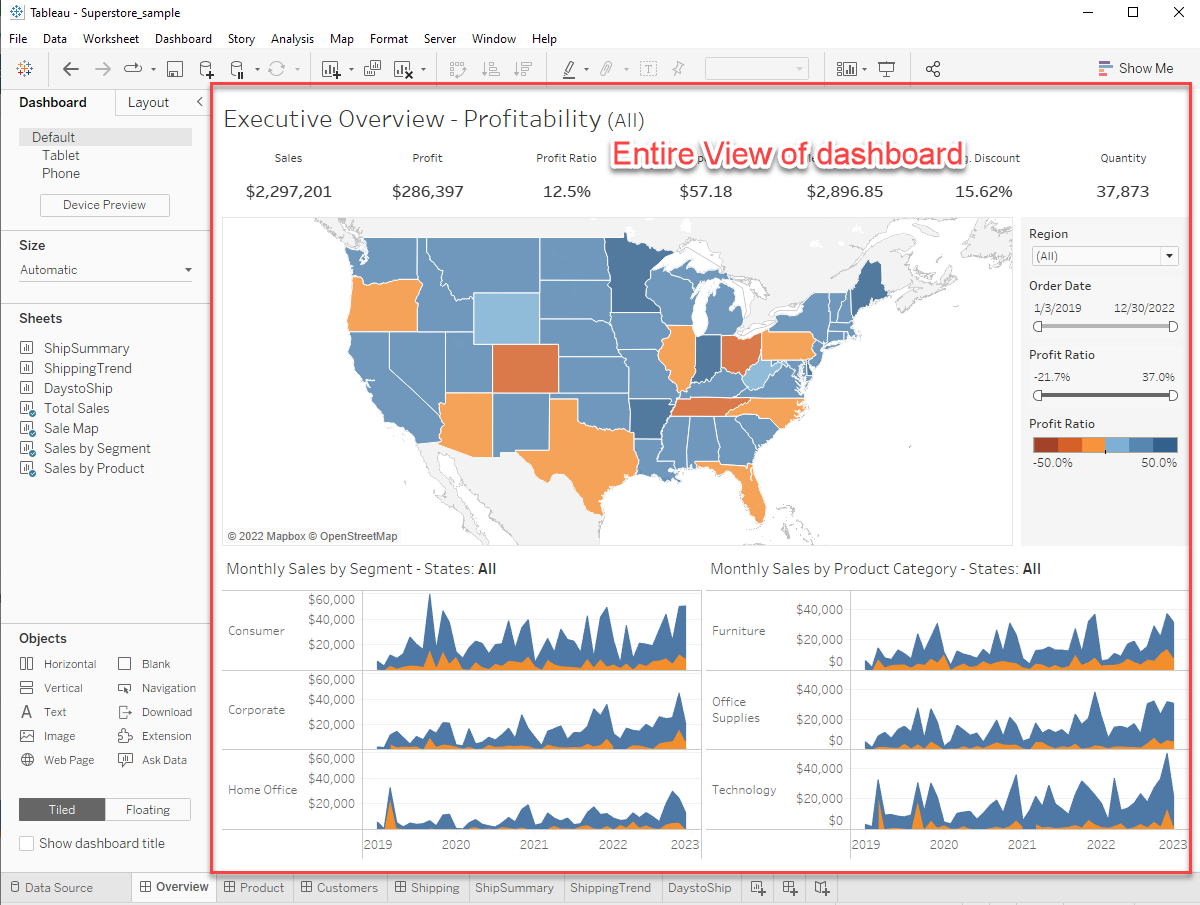

For example, in Tableau Desktop you could check all the contents on one screen.

After publishing to Tableau Server / Tableau Cloud, the dashboard view changes and you could not check all the contents on one screen.

Environment

Tableau Desktop
Tableau Server
Tableau Cloud

Resolution

Option 1

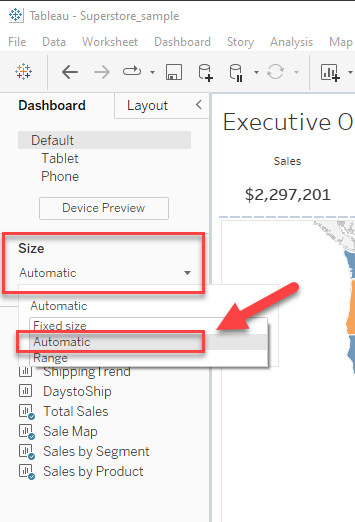

To check all the contents on one screen, set all dashboards' sizes as [Automatic] or just approximately the same size as your screen.
User-added image

Option 2
Do not select [Show Sheets as Tabs] when publishing a workbook.

Cause

This behavior is by design. On Tableau Server / Tableau Cloud, the page displaying the workbook does not reload when tabs are changed.
When [Show Sheets as Tabs] is enabled, Dashboard(s) with auto layout size will be set to the largest size of the dashboard that has fixed/custom size.

Additional Information

Please also check the attached workbook and publish it to find out how the size of [Shipping] affects other dashboards' sizes.

When the dashboard(s) size is smaller than the largest dashboard (with fixed size) within the workbook, they are displayed with extra space since they are adjusted to the largest dashboard size.
Smaller Dashboards Have Empty Space When Tabs Are Used
