Question
How to change the dimension header in crosstab without actually changing the Dimension Name in the data source?
Last Modified Date: 30 Jun 2023
Environment
- Tableau Desktop
Answer
The ability to only change the dimension header in the view is not currently built into Tableau Desktop.Consider the workaround which achieves similar functionality.
Please note that this method only applies to Dimensions (Discrete or Continuous). When you are using Dates, Measures, or Attributes that are other than a Dimension, this workaround is not applicable.
Follow the steps below:
1. Double-click the dimension added to the [Rows/Columns] shelf.

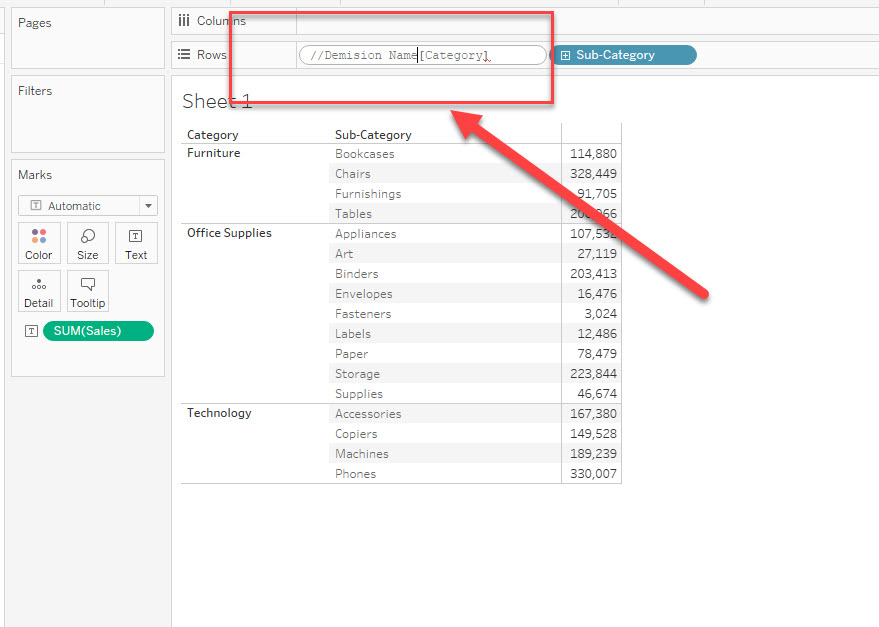

2. Add "//Dimension Name" at the beginning.

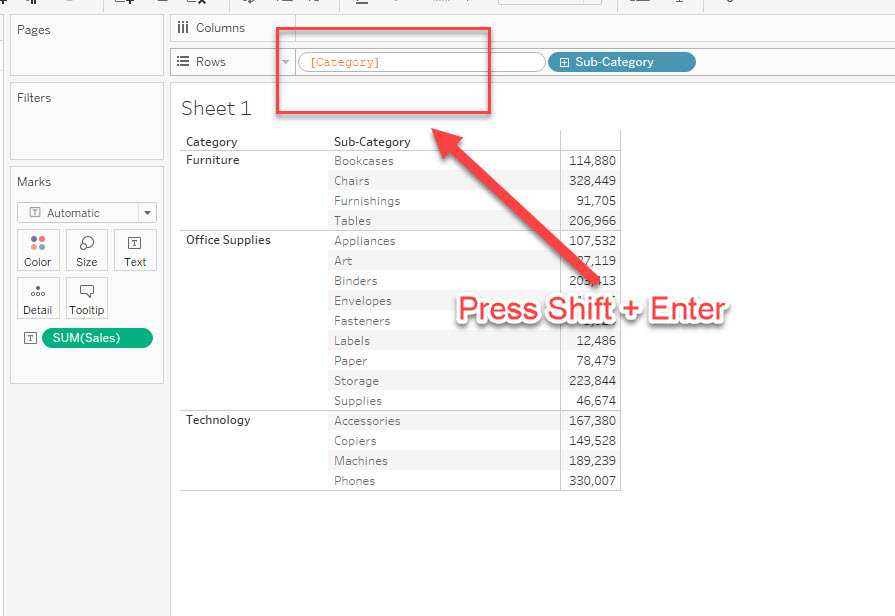

3. Press "Shift + Enter" to add a new line character.

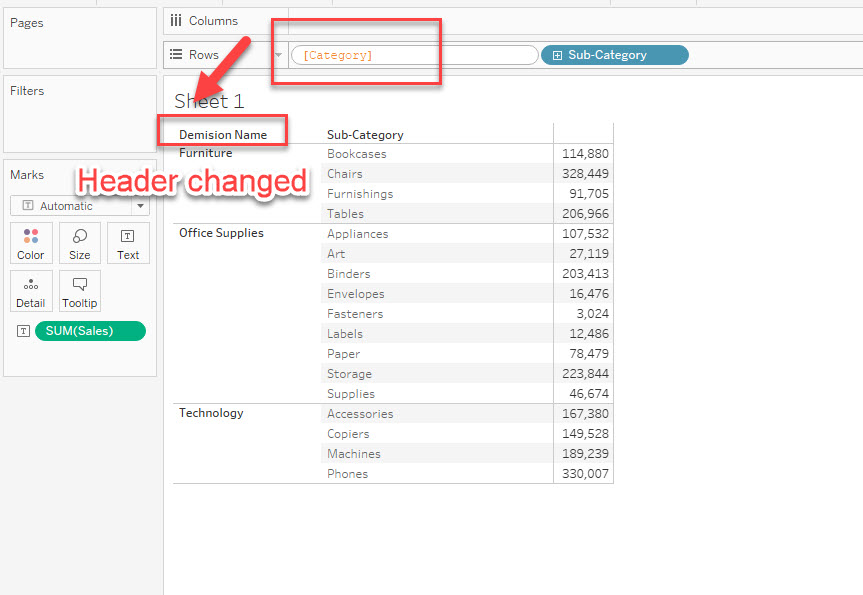

Finally, the dimension header can be changed like in the below image.
* The dimension in the [Rows/Columns] shelf has two lines like below and it will show the first line as the header and show the dimension in the second line.
---------------------
//Dimension Name
[Category]
---------------------
Please check the attached workbook for details.
Additional Information
For more information, refer to this related Youtube Video.Thank you for providing your feedback on the effectiveness of the article.
