Change the color of items in quick filter based on certain conditions

Publicado: 14 Apr 2023
Data da última modificação: 17 Apr 2023

Pergunta

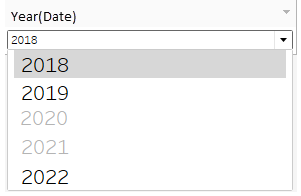

How to change the color of items in a quick filter to disable a selection when there is no record for a certain filter value?
User-added image

Ambiente

Tableau Desktop

Resposta

Follow along with the packaged example workbook. The example workbook and video (without sound ) is available in the "Attachments" section to the right of this article text.

1. Create the following calculated field Year_list

if isnull([Sales]) then null
else DATEPART('year', [Date]) END

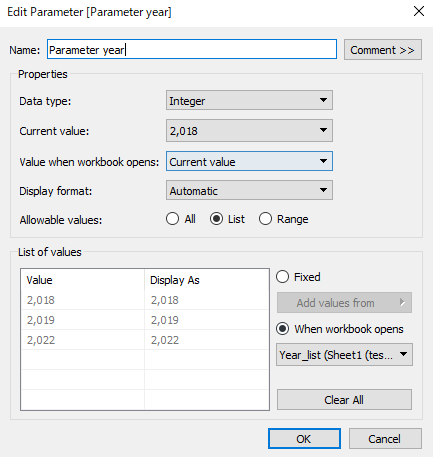

2. Create the following parameter Parameter year.

3. Create the following calculated field filter

DATEPART('year', [Date])=[Parameter year]

4. Add filter to the filter card, select True
5. Create a new worksheet Sheet 2 as to show the filter list of YEAR(Date)
6. Add YEAR(Date) to Rows, and Text in the marks card
7. Right click YEAR(Date) in the rows, uncheck Show Header
8. Create the following calculated fields
Color

isnull(SUM([Sales]))

7. Add data field Color to Color and 1 to Detail in the Marks card
8. Edit the color legend to: True > gray, False > black.
9. Create a new worksheet Year (Date) as to show the selected value of YEAR(Date).
10. Add Parameter year to Text, change the number format to: Custom 0;-0.
11. Add 1 to Detail in Marks card.
12. Create a Dashboard, add Sheet 1 to the dashboard.
13. Add a Horizontal object to the dashboard.
14. Add Sheet 2 and Year (Date) to the above Horizotal object.
15. Click the More Options button of Sheet 2 and uncheck Title.

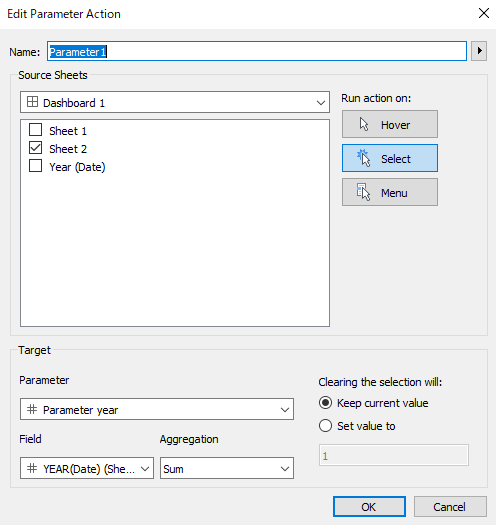

16. Add the following parameter action to the dashboard
User-added image
